The Application Properties menu allows you customize application settings related to appearance, page saving, connection and more.

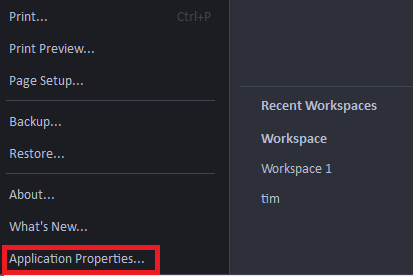

To access this menu, select the Menu icon in the top left corner of the main menu.

Then select Application Properties

Once the Application Properties menu appears, you'll have a list of options to choose from:

Appearance
Page and Files
Connection
Timezone & Clock
Formatting
E-mail
Premarket Settings
Print Settings
Symbol Extensions
Quote Ticker
Quote Bar
Screenshot
Notifications
Social Integration
Synchronization
Option Analytix Integration
Trading
Trading Default Connections
Market Screener Plus
Local Data Storage
Global Data Window

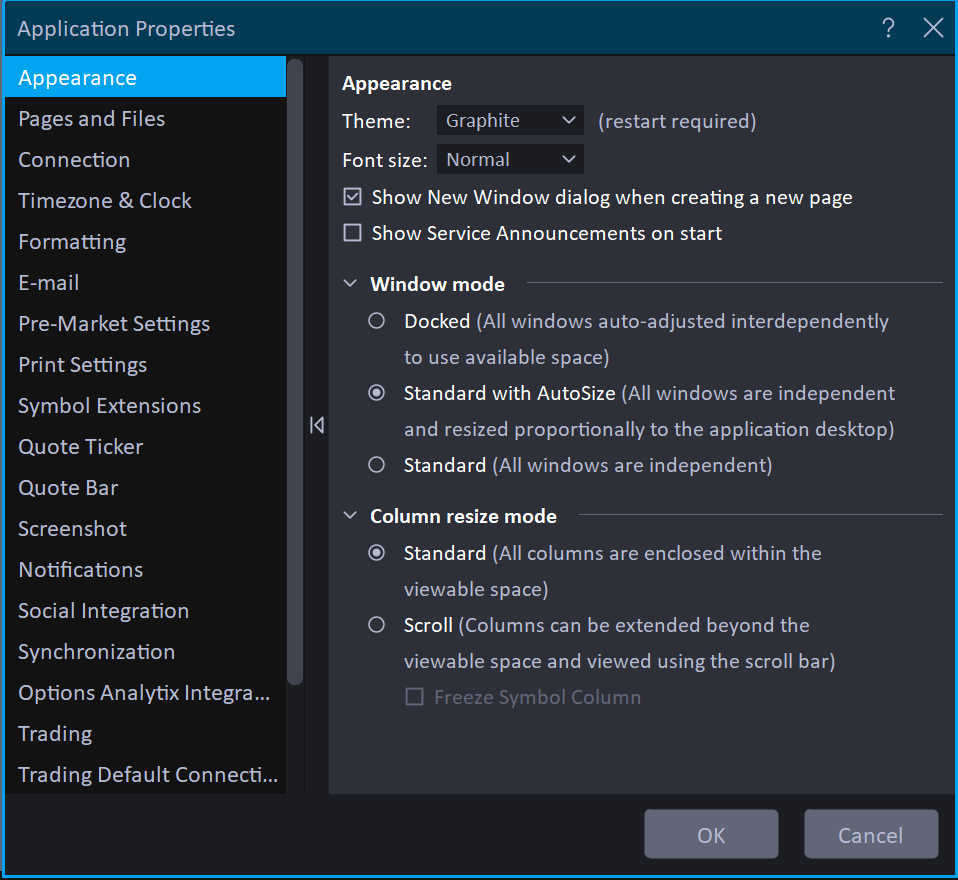

Appearance
The Appearance menu enables you to edit the color theme, language, and other items.

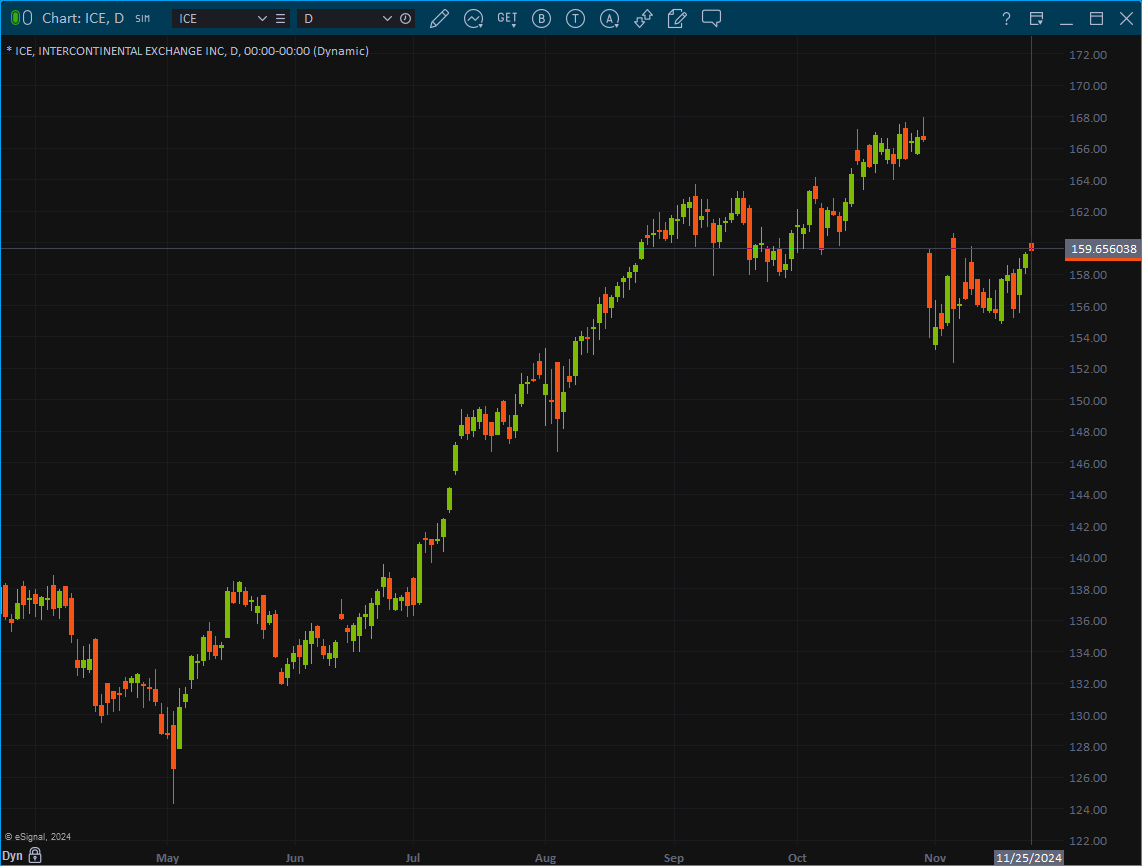

Theme: There are two color themes for the application. This is the default Graphite theme:

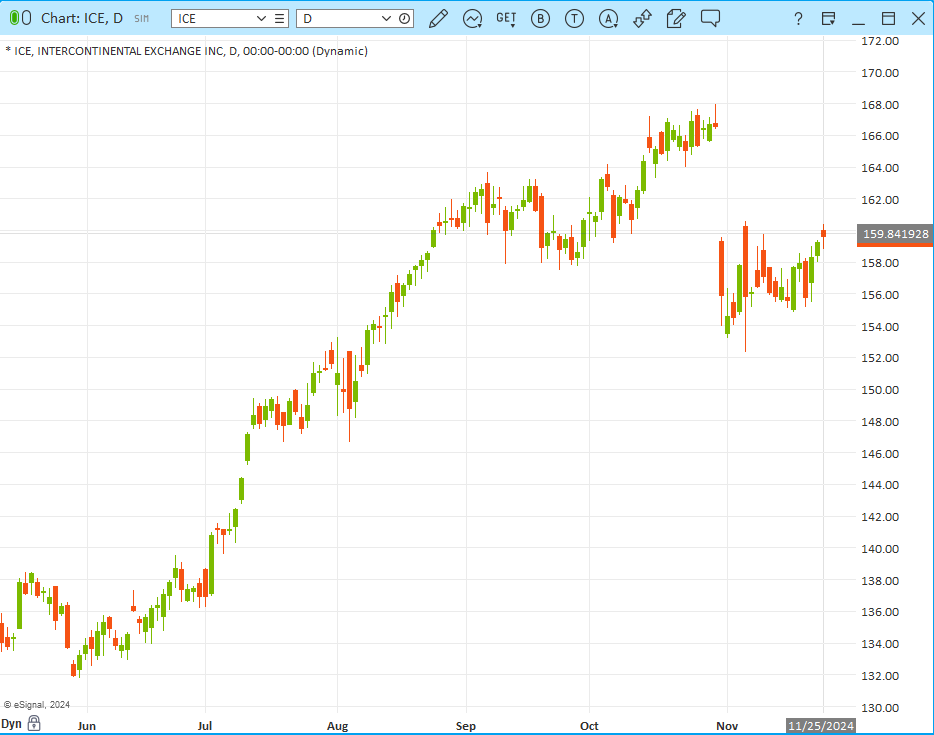

This is the same chart in the Frost theme:

Please note that you must restart the application to implement changes to the color theme.

Periodically we'll broadcast a message via a popup window in the application (such as upgrade notices, etc.).  to disable these popups, uncheck the setting for show pop window on notification event

Window Mode: Controls how the windows in your workspace are docked, font size options include tiny, small, normal, large, and extra large.

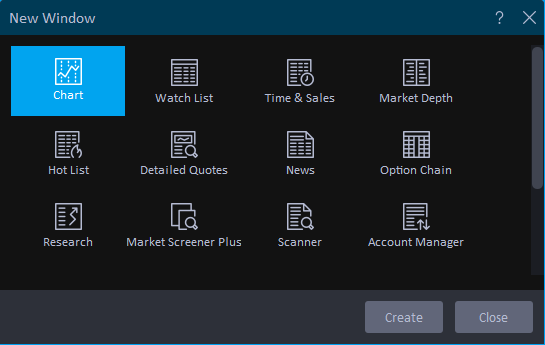

When creating a new page, you'll see the new window dialog below.  You can turn this setting off by unchecking Show New Window dialog when creating a new page

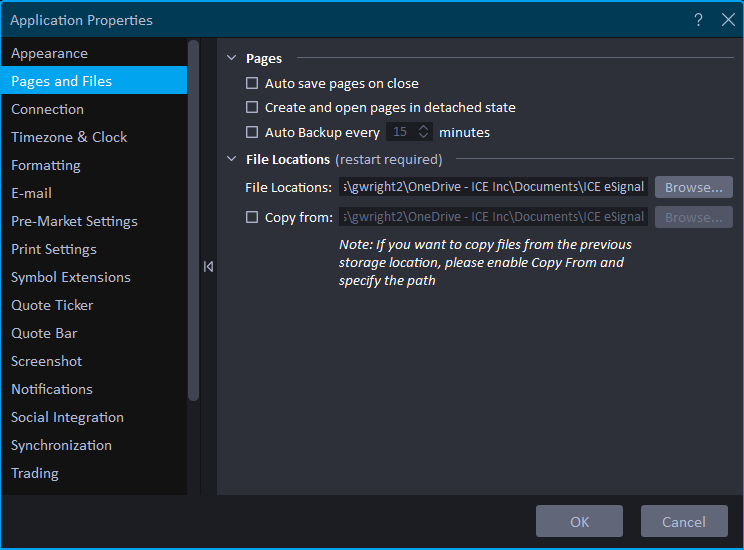

Pages and Files
The Page menu allows you to automatically save your page when closing the program.  With this setting turned off, any new changes will not be saved when closing eSignal unless you select Save Page.  Click here for more info on pages.

Added option to set the default file location
Users can now set the default location for their eSignal files.
This can be on a secondary drive or a network drive or a cloud drive (such as for example OneDrive).
In selecting the new location users also have the option to copy all the existing files from the current
default location to the new one.

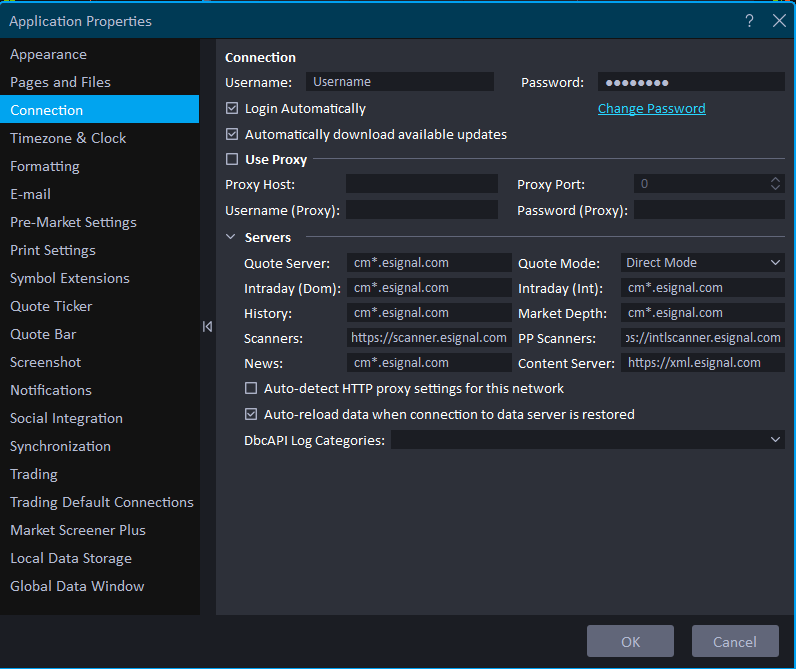

Connection
The Connection dialog box allows you to update your username and password.  Additionally, there is a setting to control proxy settings (in most cases this is not used).

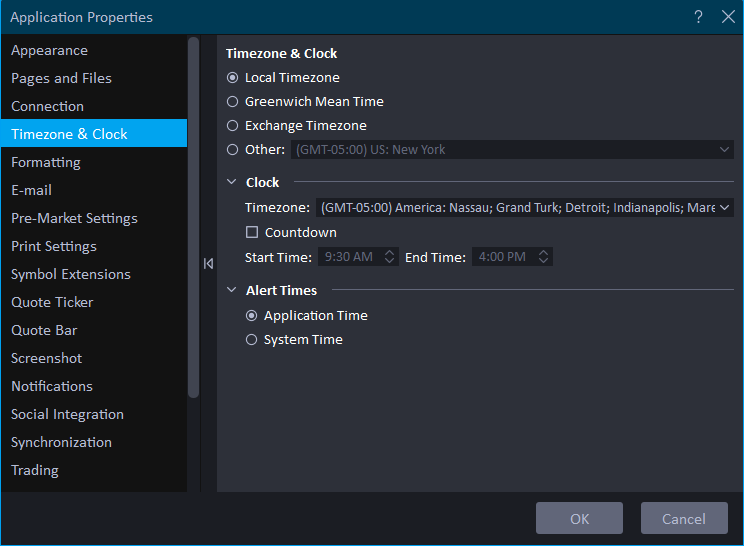

Timezone & Clock

In the top portion of this menu, you'll find the timezone display settings.  this controls the timezone that is displayed via the charts, watch list, and other windows.  you'll have a variety of timezones to choose from.  local is set by default.  you can also choose Greenwich Mean Time (GMT), exchange time, or choose a specific timezone using the drop down menu for other

the clock setting controls the time displayed in the bottom right corner of the application.



The eSignal application time is synched to your pc clock.  Use the dropdown menu to specify the timezone you wish to use.  the countdown is an alternate display setting.  instead of the time, you can check this setting to display a countdown to whatever start time is specified.  once the start time is triggered the countdown will reset to counting down to the specified end time.  the countdown is useful in determining how much time left before the exchange opens and closes.

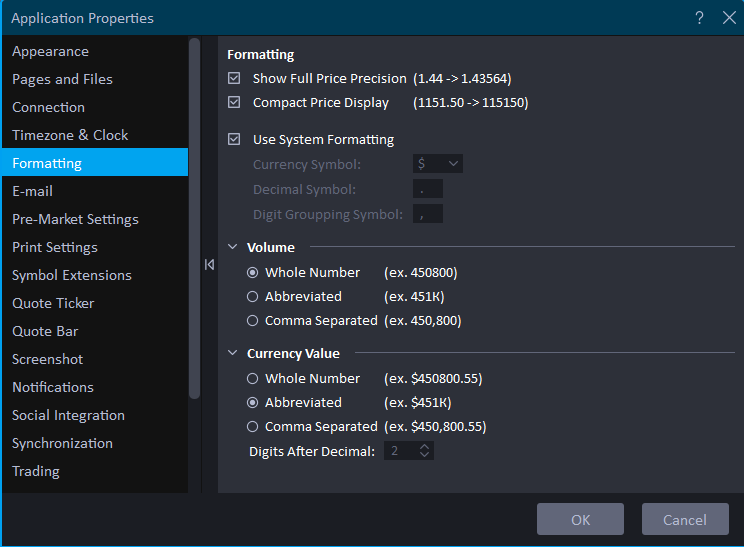

Formatting

Show full price precision is tailored towards stocks trading in sub penny increments.  once enabled, full precision is displayed (i.e. more than 2 decimal places).  with this setting unchecked, the decimal place will display in the hundredths (2 decimals).

Compact Price Display is tailored towards futures.  If this setting is checked, the decimal place will not be displayed for Futures.  Unchecked, you'll see a decimal place for Futures.

the volume setting controls how the volume is displayed in the watch list and other windows. whole number will display the entire volume figure (16500000).  abbreviated will round to the first 3 figures (16.5m).  comma separated will display the volume figure with commas (16,500,000).

the dollar value setting controls how dollars will be displayed in a portfolio.  whole number will display the entire dollar figure (10000.00).  abbreviated will round to the first 3 figures (10k).  comma separated will display the dollar figure with commas (10,000.00). you can also add more digits after the decimal place for dollar values.

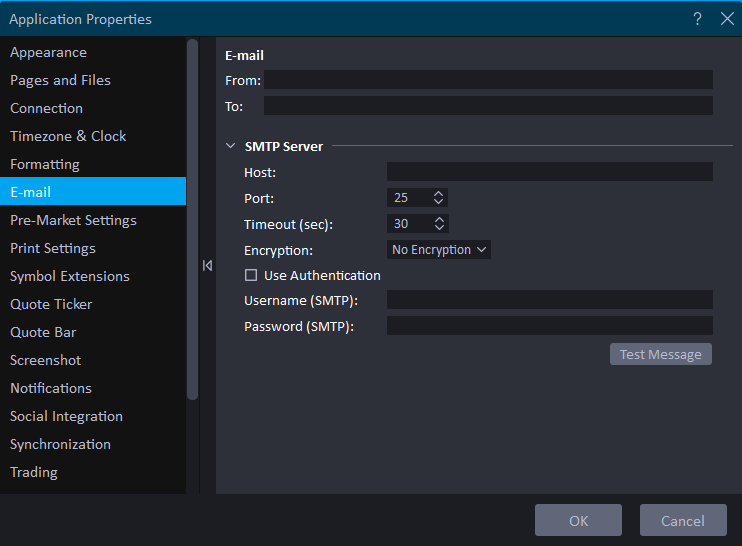

E-mail
E-mail settings work in conjunction with alerts.  Enter the e-mail address you would like to send From and To along with the appropriate smtp server info.  Use the Test Message button to confirm that the e-mail alerts have been properly configured.  please check with your ISP or e-mail provider on the correct smtp settings for your specific e-mail service.

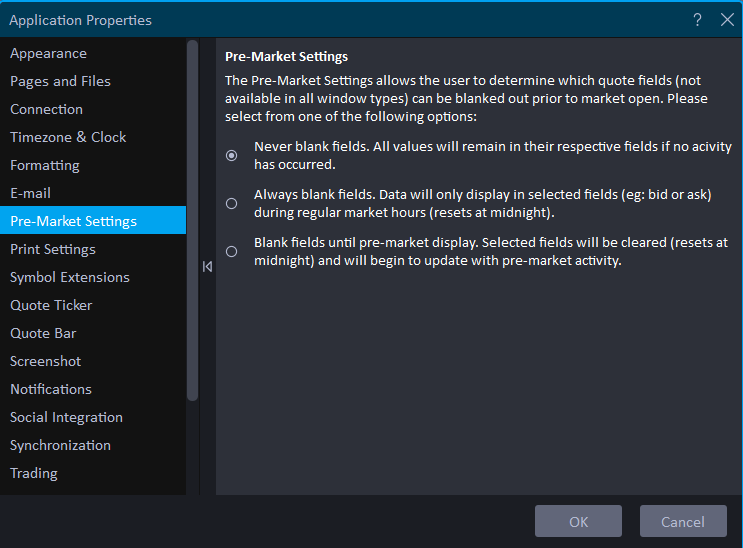

Premarket Settings
This feature, when turned on, zeros out different fields in the quote window. zeroing out the data helps prevent traders from making ill-advised trades based on stocks that are not actively being traded (especially true with OTC stocks that do not trade very often). it also allows traders to see that, when the market opens, their actual quote window fills in with data (instead of replacing old data).

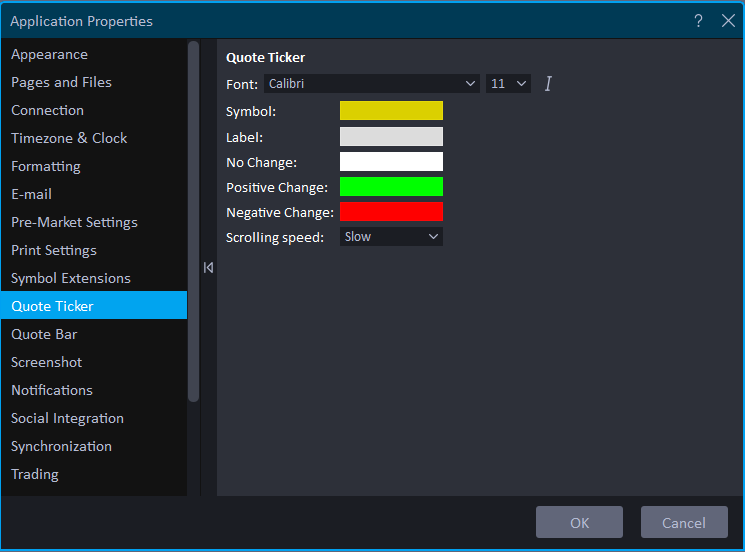

Quote Ticker
The quote ticker enables you to set the appearance and scrolling speed of the quote ticker.  You can also  change the font, font size and colors.

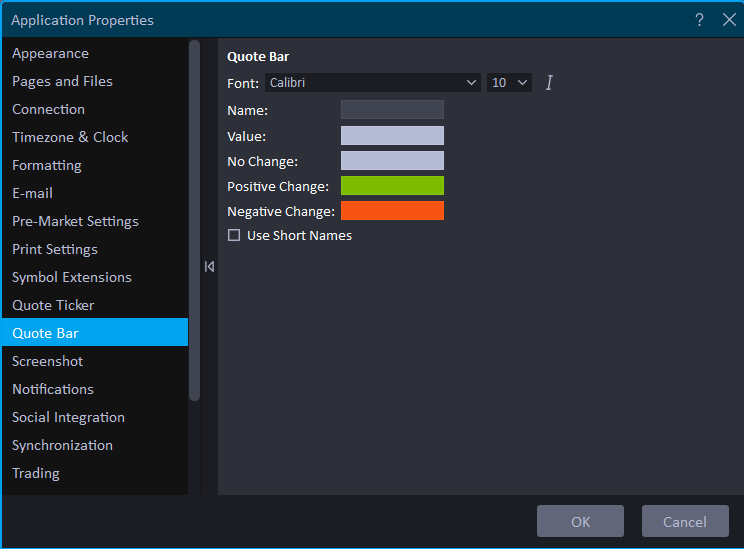

Quote Bar
The Quote Bar section enables you to set the appearance of the Quote Bar.  You can change the Font, Font Size and Colors.

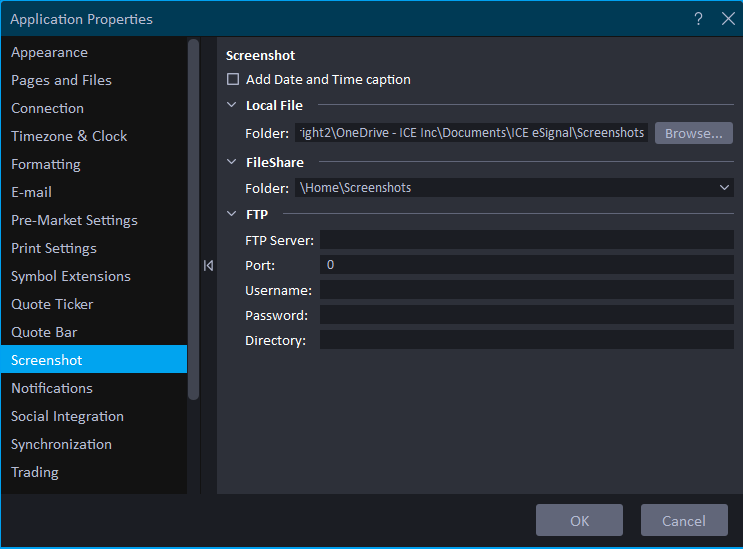

Screenshot
The screenshot section allows you to set the location of where Screenshots will be saved, locally, .  You can also enter in your File Share settings and FTP settings, if you wish to send screenshots to those locations.

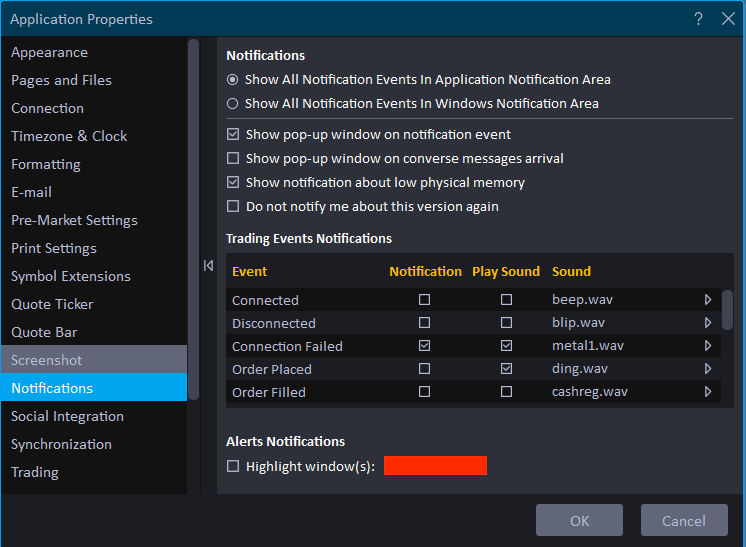

Notifications
The Notifications section allows you to turn Notifications on or off.  A green means the Notification is turned on and a red means the Notification is turned off. You can also choose which sound will play when they a Notification is triggered.

Synchronization
Taking advantage of FileShare, users now have the option to synchronize eSignal files between different
computers.

Depending on the users’ selection these files may include bar edits, function libraries, Market Screener
filters, formulas in the My Formulas folder, sounds, workspaces and pages.
Please note that in this initial iteration of this functionality any pages that are open at the time of launching the application could be opened prior to being synchronized and should be reloaded before applying any changes to avoid a potential data loss. In the next version this will no longer be necessary as the pages will be loaded only after they have been synchronized.

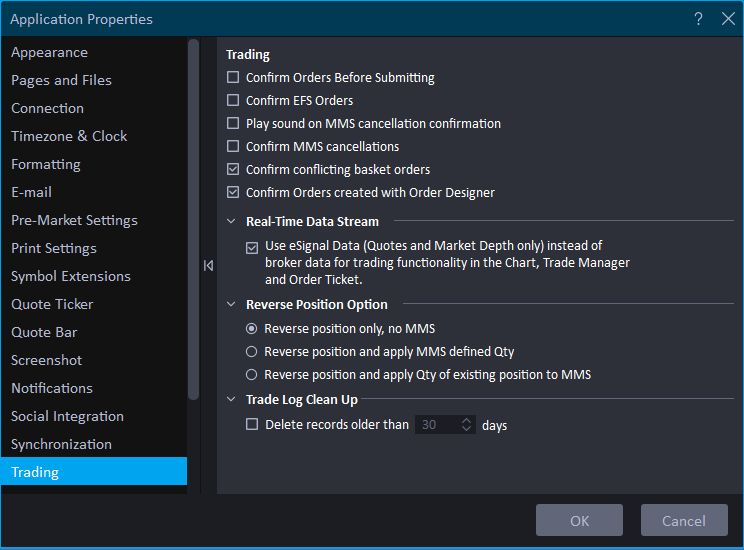

Trading
The trading section allows you to turn Order Confirmations on or off when using the Integrated Trading with eSignal.

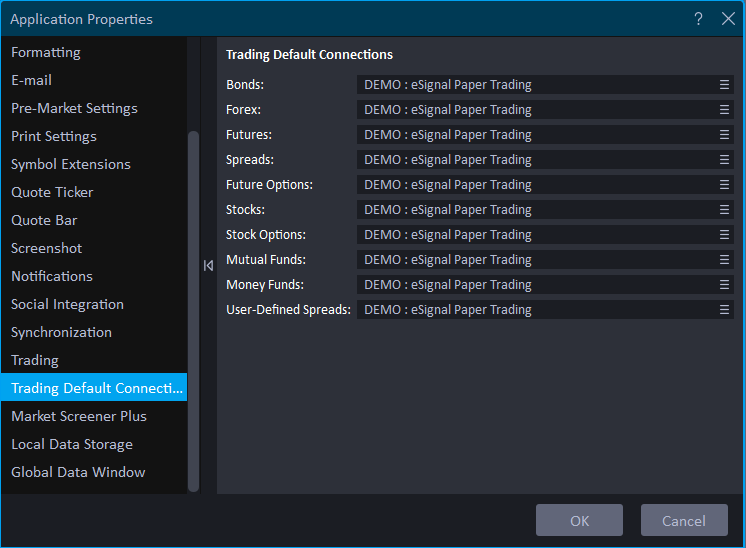

Trading Default Connections



Market Screener Plus

The Market Screener Plus+ is a powerful tool designed to help traders discover new trading opportunities quickly and efficiently. By scanning global markets and utilizing extensive criteria options, it simplifies the process of identifying profitable trades.

Key Features:

  • Global Scanning: Analyze symbols across dozens of exchanges worldwide to discover opportunities that match your trading criteria.
  • Customizable Scans: Create scans using over 50 fundamental data fields and 25 technical analysis indicators. Save your custom scans in a filter library for future use.
  • Preset Scans: Leverage a library of preset scans to get started immediately, or tailor scans to your preferences for a more personalized approach.
  • Broad and Narrow Filtering: Begin with a broad scan using benchmarks and refine results to pinpoint specific opportunities.
  • Multi-Time-Frame Analysis: Analyze symbols using multiple time frames to identify potential trades effectively.
  • All-in-One Solution: From identifying opportunities to advanced charting and real-time stock quotes, the Market Screener Plus+ integrates everything you need in a single platform.
  • Export and Sorting Options: Export scan results to Excel for further analysis or copy them into a watchlist for ongoing tracking.

Availability: Included free with an eSignal subscription, this feature eliminates the need to manually sift through thousands of stocks, enabling users to focus on high-potential trades.



Local Storage Data

Overview-


The Local Data Storage feature optimizes application performance by caching downloaded data locally. Instead of re-downloading data each session, LDS ensures faster loading times, especially for high-volume symbols and lower time frames.

  • Enhanced Speed: Load charts faster, especially for symbols like AAPL, TSLA, SPY, or E-Mini with high activity and granular intervals (e.g., 1-minute or tick charts).
  • Persistent Data: Data is cached locally and remains available for use across sessions, reducing dependency on internet re-downloads.
  • Customizable Storage: Users can choose where to store data by specifying a local folder.
  • Efficient Space Management: Delete specific stored symbols/intervals to manage disk space efficiently.

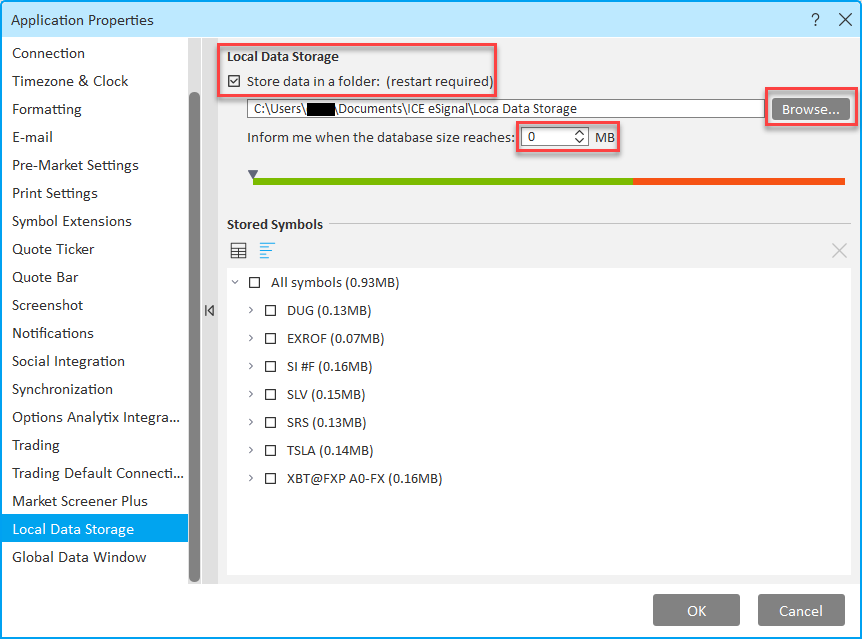

Enabling Local Data Storage:

  1. Create a folder for data storage.
  2. Go to Options > Application Properties.
  3. Select Local Data Storage from the left pane.
  4. Check the box for storing data and browse to select your folder.
  5. Restart the application for changes to take effect.
  6. Optionally, set a notification threshold for when stored data exceeds a certain size.

This feature significantly boosts performance, especially for traders who analyze large datasets or frequent high-traffic symbol:


Note: The checkboxes in the Stored Symbol area allows a user to select one or more symbols/intervals at the same time and then click Delete key to delete that selection (to save disk space).

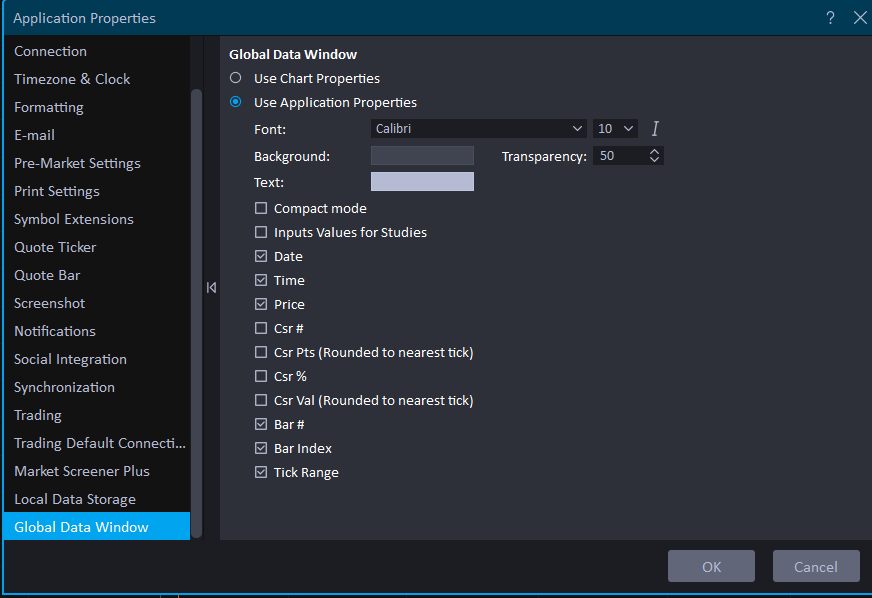

Global Data Window

The Global Data Window provides a centralized, floating data display that enhances cross-chart data visibility. Its ability to remain active across pages makes it a convenient tool for real-time data tracking.

Features:

  • Dynamic Data Display: Hover over any chart, and the Global Data Window updates to show corresponding data instantly.
  • Compact Mode: Save space by abbreviating labels without losing essential information.
  • Transparency Settings: Maintain chart visibility by adjusting window transparency.
  • Customizable View: Modify font styles, colors, and window background to suit preferences.
  • Study Input Values: Display study inputs directly from the chart's properties.
  • Bar Counts and Index: View total bar counts and cursor position relative to the current bar for precise analysis.

Configuration:

  • Navigate to Options > Application Properties and select Global Data Window.
  • Enable or disable features such as compact mode, transparency, or input value display.
  • Adjust the window's appearance and set visibility preferences to ensure optimal usability.
